Divisibility & division diagrams
Divisibility diagrams provide a visual way to check if a number is divisible by another, or more generally to determine its remainder on division. A diagram exists for each divisor, and can be used on an input number of any length by following a virtual point as it moves through coloured arrows.
By adding some digits on the inside of the diagrams, the algorithm can be extended to return quotients as well, allowing it to be used for general division (both Euclidean and fractional). I’m not sure if it’s a particularly practical or efficient method for manual arithmetic, but I think it’s an interesting one nonetheless, and the diagrams are easy to recreate if you know the pattern.
Background
I first came across divisibility diagrams in this 2018 blog article by Mark Dominus, which prompted me to write a script to generate them for any divisor and base while learning Python later that year, and to try to come up with a way to generalise them into division diagrams. I moved the program over to an HTML applet (using the p5.js drawing library) in 2019 to be able to change the parameters on the fly, and added further features in the following years.
Through further searching, I have since found versions of the specific diagram for divisibility by seven in a few other places, including on the French Wikipedia, on Numberphile, and a planar version (without arrow intersections) in a 2009 blog post by Tanya Khovanova and David Wilson. The diagrams are also closely related and visually identical to the modular times tables popularised by Mathologer, as described below.
In the context of divisibility by any number, however, they otherwise appear to be quite obscure, and I haven’t found my idea of division diagrams with quotients anywhere else (although I’m sure they must have been discovered before). Let me know if you know of any other interesting resources or appearances.
Basic construction
A diagram is determined by two numbers: the divisor or modulus \(n\), which is equal to the number of points around the edge, and the base \(b\) to work in, which affects the blue inner connections.
The black arrows around the circumference, which I refer to as “steps”, obviously link each number \(i\) to its successor \(i+1\) (and \(n-1\) back to 0). The blue inner arrows, or “jumps”, correspond to multiplication by the base modulo \(n\), so \(i\) points to \((b \cdot i)\;\%\;n\). The blue numbers next to them are the quotients (integer parts) of division of this product by \(n\), i.e. \(\left\lfloor \frac{b i}{n} \right\rfloor\).

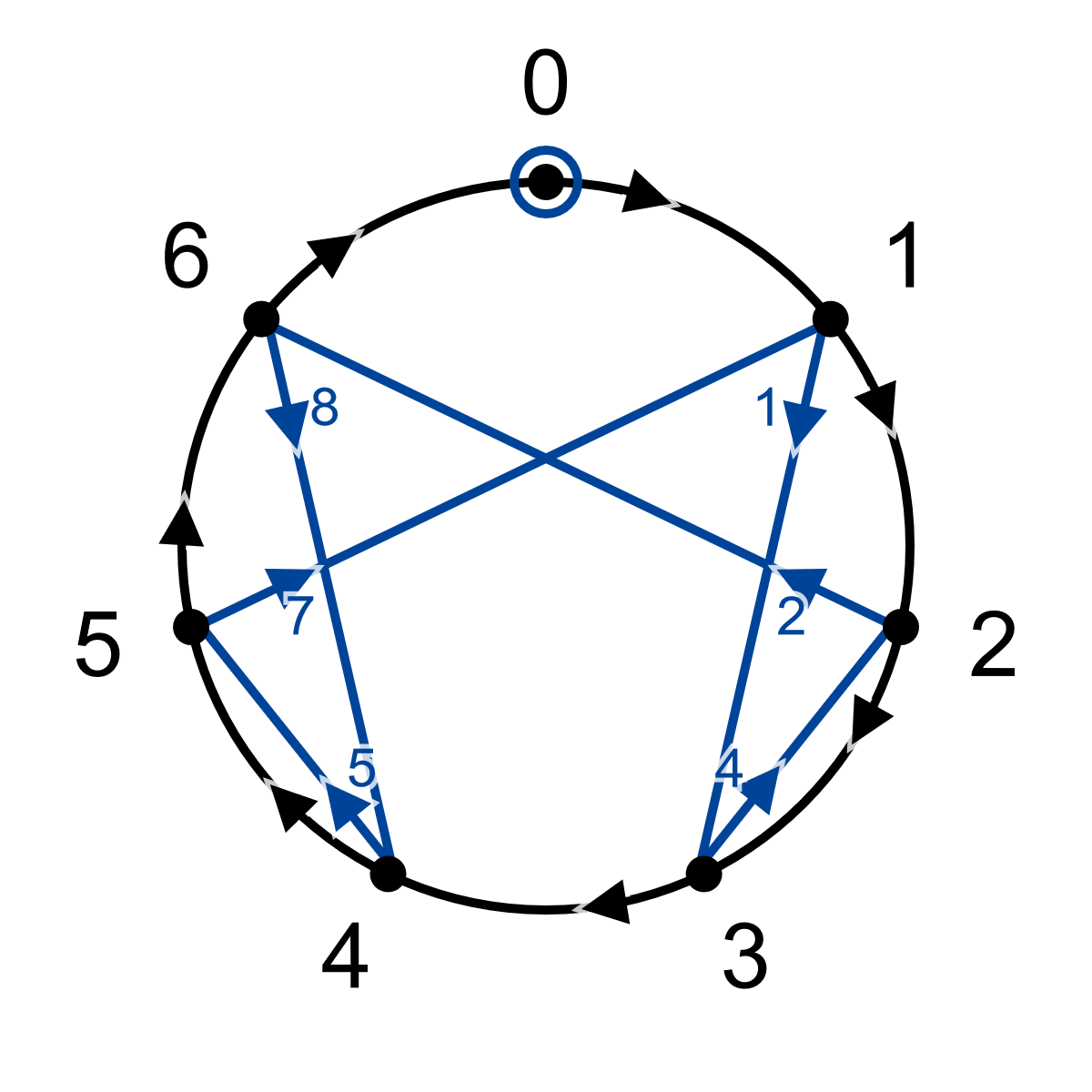

For example, the diagram for division by seven above has \(b=10\) (decimal) and \(n=7\). Each blue arrow thus links a number to ten times its value, modulo 7. Because \(10 \equiv 3 \pmod 7\), the arrows are the same as if each number was tripled: 1 goes to 3, 2 to 6, and 3 to \(9\;\%\;7 = 2\). The blue numbers are the multiples of 10 divided by 7, rounded down: \(\frac{10}{7} = 1.428 \approx 1\), \(\frac{20}{7} = 2.857 \approx 2\), etc. Together, they give the quotient and remainder of these fractions: \(\frac{20}{7}\) is 2 with remainder 6.
A blue ring around a point serves as a stylised representation of an arrow from that point to itself. Since 0 mod anything is 0, it always has such a ring; specific relations between the base and divisor can result in other numbers having one as well. 0 is also implied to have zero as its blue quotient number.
App options
Besides the base and divisor, the app has a number of visual options. The dropdown menus set the base to display the blue (inner) and black (outer) numbers in; “Quotients” toggles the display of the blue quotient digits; and “Round” switches between a polygonal and circular style.
There is no theoretical limit on the values of \(n\) and \(b\), although the number display and interactive mode only work for integer bases between 1 and 36. (Base 1 is a special case, being a bijective system without a 0 digit, and is basically just tallying.)
Interactivity
The app has an interactive mode to demonstrate the divisibility and division algorithms (the “Quotients” option toggles between the two). Clicking the “step” and “jump” buttons moves the red dot indicating the current remainder, and shows the digits of the corresponding input and output numbers. Its options are:
- Step: follow a black arrow (and increment the last digit) [shortcut:
S]. - Jump: follow a blue arrow (and append a new digit) [
J]. - Dot: add a decimal point to the input and quotient lines [
.]. - Step size: number of steps the “step” button takes, corresponding to the input digit. Digits over 9 are represented by letters.
- Animations: toggle smooth movement of the red dot and the digits.
- Keyboard: enable the above keyboard shortcuts and digit input page-wide (they’ll work regardless if the cursor is in the “step size” box). Note that the
JandSshortcuts will be overshadowed by digits for high enough bases.- Auto-step: automatically jump and step when a digit is typed, so that division is performed by simply typing the input number.
- Reset: empty the input and quotient, and move the current point back to 0.
You can also click on the diagram itself to manually change the dot position, and remove the leftmost input/quotient digits by clicking them.
Technicolor
This is a separate web applet I created shortly after porting the main one. It serves to explore the visual patterns created by the divisibility diagrams in a different way, sacrificing some of their ostensible practicality.
The main features are the ability to combine diagrams for different divisors, and to colour the diagram in several ways. To accommodate, numbers are displayed as fractions, with the denominator corresponding to the divisor/modulus, and the arrowheads are replaced by lines within the dots (or smaller dots for self-links).
Functions and algorithms
Divisibility
The basic procedure for using a divisibility diagram is as follows:
- Start at the topmost dot (0).
- For each digit of the input number (from left to right):
- Move along a single blue arrow (“jump”).
- Move clockwise around the diagram along the number of black arrows corresponding to the current digit (“step”).
- The final position is the remainder.
This basically “builds up” the input number by iteratively multiplying by the base to shift the existing digits over, and then adding a number equal to the next digit. At each point in the algorihthm, the dot position shows the remainder (mod \(n\)) of the number formed by the digits up until that point.
(Since a blue ring represents a link from a dot to itself, jumping from such a point doesn’t change the position. Because 0 always has a ring, the very first jump can be omitted, and jumps can be seen as moving from a digit to the next, as depicted in the video. Including a jump at the start of the loop makes the algorithm simpler, though, and the division version below makes more sense with the resulting leading 0.)
Euclidean division
The version for division is naturally a bit more complex, as it requires keeping track of the digits of the quotient (result of division) as well as those of the input and the position of the dot. An easy way to do so is to write down the input number, so that the quotient can be written below it with the digits lining up. This way, the quotient digits double as a mark that the corresponding input digits have already been used.
- Start at the topmost dot (0).
- For each digit of the input number (from left to right):
- Move along a single blue arrow (“jump”); take the blue number next to the arrow and write it down as the next digit of the quotient.
- Move clockwise around the diagram along the number of black arrows corresponding to the current digit (“step”); increment the last digit of the quotient whenever you reach or cross zero.
- The written-down number is the quotient; the final position is the remainder.
Appending a digit for every jump works because multiplying by the base \(b\) also increases the quotient and remainder by a factor \(b\) (i.e., adds a 0 at the end). This new remainder \(b i\) may be larger than the divisor \(n\), though, so any multiples of \(n\) need to be taken out of the remainder, and added to the quotient. This added amount, the integer part of \(\frac{b i}{n}\), is given by the blue digit.
Steps may also impact the quotient. Note how the third jump in the video initially adds a 6 to the quotient, but the digit changes to a 7 after the following set of five steps crosses 0 in the diagram. The remainder crossing zero means that the input has passed a multiple of the divisor, which adds 1 to the quotient. It’s a bit like receiving money when passing the starting square in Monopoly (or at least that’s what helped me remember the rule when I was first figuring out the algorithm).
Fractional division
The above algorithm gives us the Euclidean quotient and remainder, but there’s no need to stop there. Although the diagram itself has no concept of a decimal or radix point, shifting it (i.e., multiplying or dividing by the base) affects the dividend and quotient proportionally: if \(\frac{1729}{7} = 247\), then \(\frac{172.9}{7} = 24.7\) and \(\frac{1.729}{7} = 0.247\). Therefore, in terms of the digits, the computation doesn’t change if a fractional number is inputted, as long as a radix point is inserted in a matching place in the output.
This also means that getting the decimal places for a division is as easy as adding zeroes after the radix point in the input, which corresponds to jumping (following blue arrows) indefinitely without any steps in between. The accompanying blue numbers will spell out the fractional part of the quotient. In the mod-13 diagram from the video above, continuing in this way from the original remainder 2 moves us through a six-arrow cycle that results in the expanded answer \(\frac{3551}{13} = 273.153846153...\)
Base conversion
The classic algorithm for converting numbers from one base to another involves repeated division. After setting the base of the diagram to the old base and the divisor to the new base, a number can be converted by iteratively applying the division algorithm on the previous quotient, and concatenating the remainders in reverse order. Setting the base of the outer numbers to the divisor may be helpful.
- Divide the input number by the new base as above. Write the remainder down in the new base as the last (ones) digit of the output number.
- Take the quotient, and divide it by the new base. Write the remainder down as the next digit on the left.
- Repeat until the quotient is zero.
Multiplication
As mentioned above, the blue numbers and blue arrows of any diagram respectively correspond to the quotient and remainder of division of \(b i\) by \(n\). Abbreviating this quotient as \(q\) and the remainder as \(r\), this division can be notated by the equality
\[\frac{b i}{n} = q + \frac{r}{n}\]or, multiplying both sides by \(n\),
\[b i = q n + r\]This reveals an alternative interpretation of division diagrams, namely as a visual encoding for multiplication of each number \(i\) by the base \(b\). Modulo-\(n\) times tables, which disregard the quotients \(q\) and are thus constructionally equivalent to divisibility diagrams, seem to be relatively well-known, particularly for their geometric properties. See, for instance, these videos by Mathologer and the Coding Train, which cover some of the same visual patterns described in the section below.
Including the quotients, though, the right-hand side (\(q n + r\)) can be read as a two-digit number in base \(n\), with \(q\) in the \(n\)s place and \(r\) in the ones place (note that, by definition of Euclidean division, \(r < n\)). This essentially turns the original meaning of the diagram on its head: in addition to division by \(n\) in base \(b\), it encodes multiplication by \(b\) in base \(n\)!

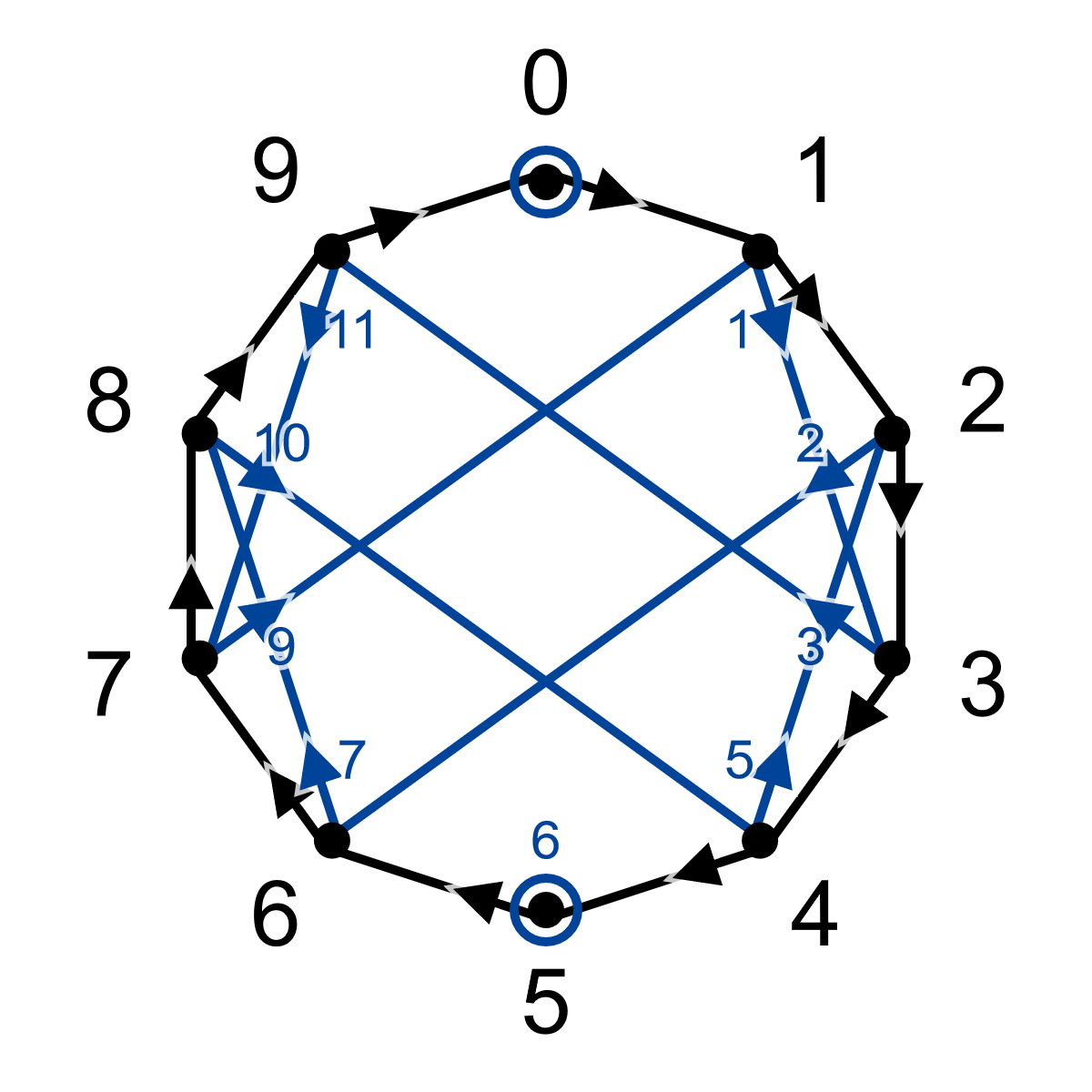

For example, the mod-10, base-13 diagram contains the multiples of 13 (in decimal), which can be read off by concatenating the quotient number next to any blue arrow (which is \(q\)) with the destination of that arrow (\(r\)):
The arrow that starts at the seventh dot has a 9 next to it and points to 1, so \(7 \cdot 13 = 91\). Five has a 6 and links to itself, so \(5 \cdot 13 = 65\).
This interpretation of the concatenated \(q \Vert r\) as a base-\(n\) number is somewhat complicated by the fact that unlike \(r\), \(q\) may equal or exceed \(n\) for higher multiples if \(b > n\), in which case it isn’t a valid base-\(n\) digit. By setting the inner base to “divisor”, these values for \(q\) will be converted to multi-digit numbers in base \(n\), and will work as expected when concatenated. The last two multiples \(8 \cdot 13 = 104\) and \(9 \cdot 13 = 117\) therefore show up correctly in the diagram above. I have not found a way to adapt the division algorithm to multiply larger numbers iteratively yet.
Visual patterns
Epicycloids

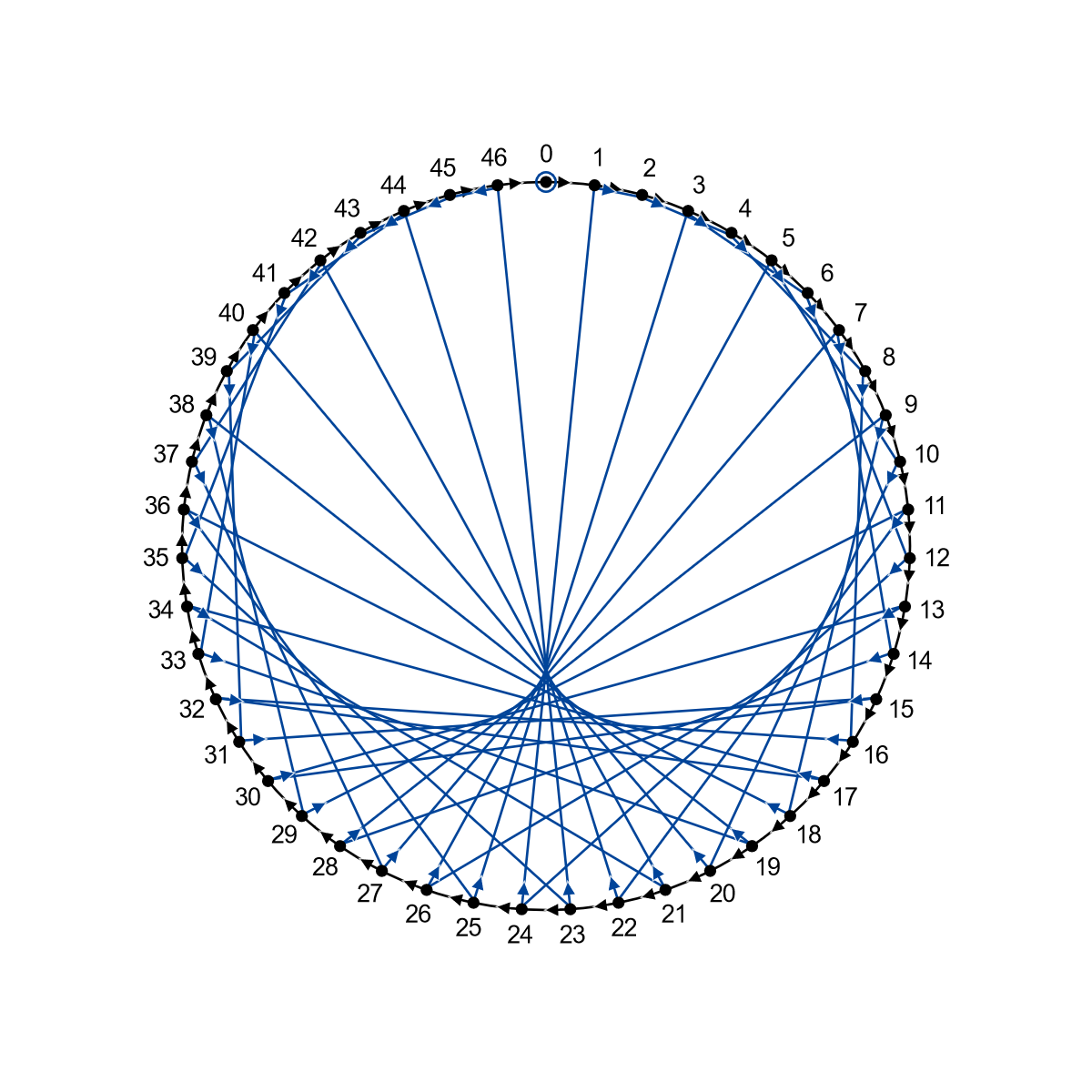

When you set the base to 2 and crank up the divisor, you’ll see a shape emerge that you might notice I have some fondness for:
In base 2, the blue arrows lead from each number to their double: 1 goes to 2, 2 to 4, etc. This is equivalent to Luigi Cremona’s method for drawing the cardioid: mark \(n\) equally spaced numbered points on a circle, and draw lines from each point \(i\) to \(2i\) (modulo \(n\)). A higher number of points leads to a closer approximation of the shape; in the limit, as the number of points goes to infinity, the visible shape (more formally, the envelope of the family of lines) exactly coincides with a cardioid.
Similar shapes can be seen for other bases as well. In base 3, increasing the divisor reveals a two-bulbed, two-cusped shape called a nephroid. In general, each base \(b\) corresponds to a member of the epicycloid family with \(b-1\) bulbs and cusps, whose Cremona construction \(b i\) matches the blue arrows of a diagram in that base.
The epicycloids also pop up whenever the divisor is one less than a multiple \(k b\) of the base, with the number of bulbs being \(k-1\). For example, the mod-19 diagram in decimal (\(n = 2 \cdot 10 - 1\)) displays another cardioid, as does the mod-31 diagram in hexadecimal. The arrows go the other way, though, as even numbers point to half of themselves. If the divisor is sufficiently high, two epicycloids will even be visible. This diagram has base 9 and modulus 152, and merges an 8-bulb (the “limit shape” for base 9) with a 16-bulb (since the divisor is \(17 \cdot 9 - 1\)):

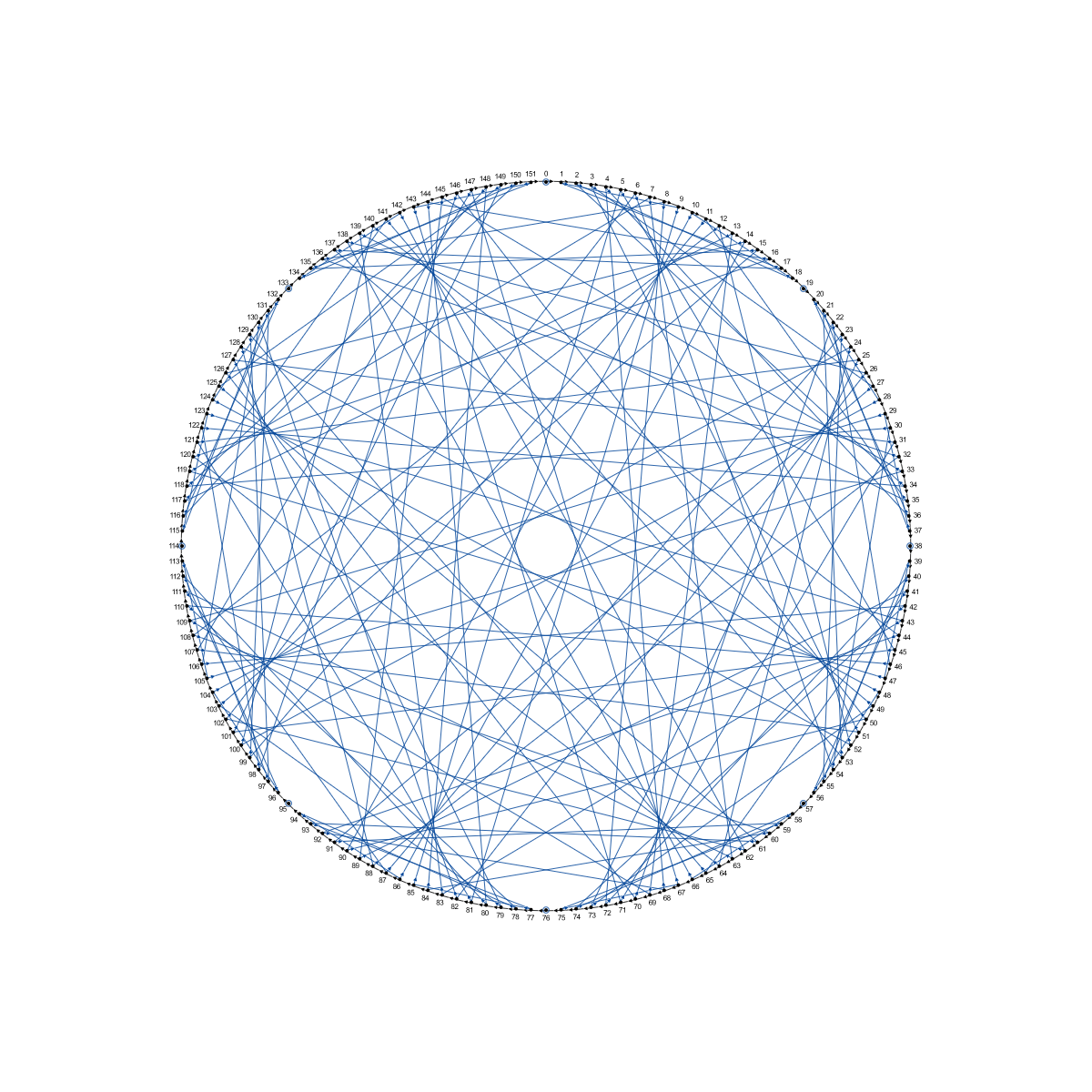

Yet another family of diagrams showcasing these shapes (at least for high enough bases) consists of the divisors leading up to the base, i.e. \(n = b-k\) for \(k \geq 2\). The link can be seen algebraically by substituting this value into the blue arrow formula \(b i\), leading to the congruence \((n + k) i \equiv k i \pmod n\). This latter form is equivalent to the general formula for base \(k\), and hence to the \(k-1\)-bulb epicycloid.
Turtles all the way up

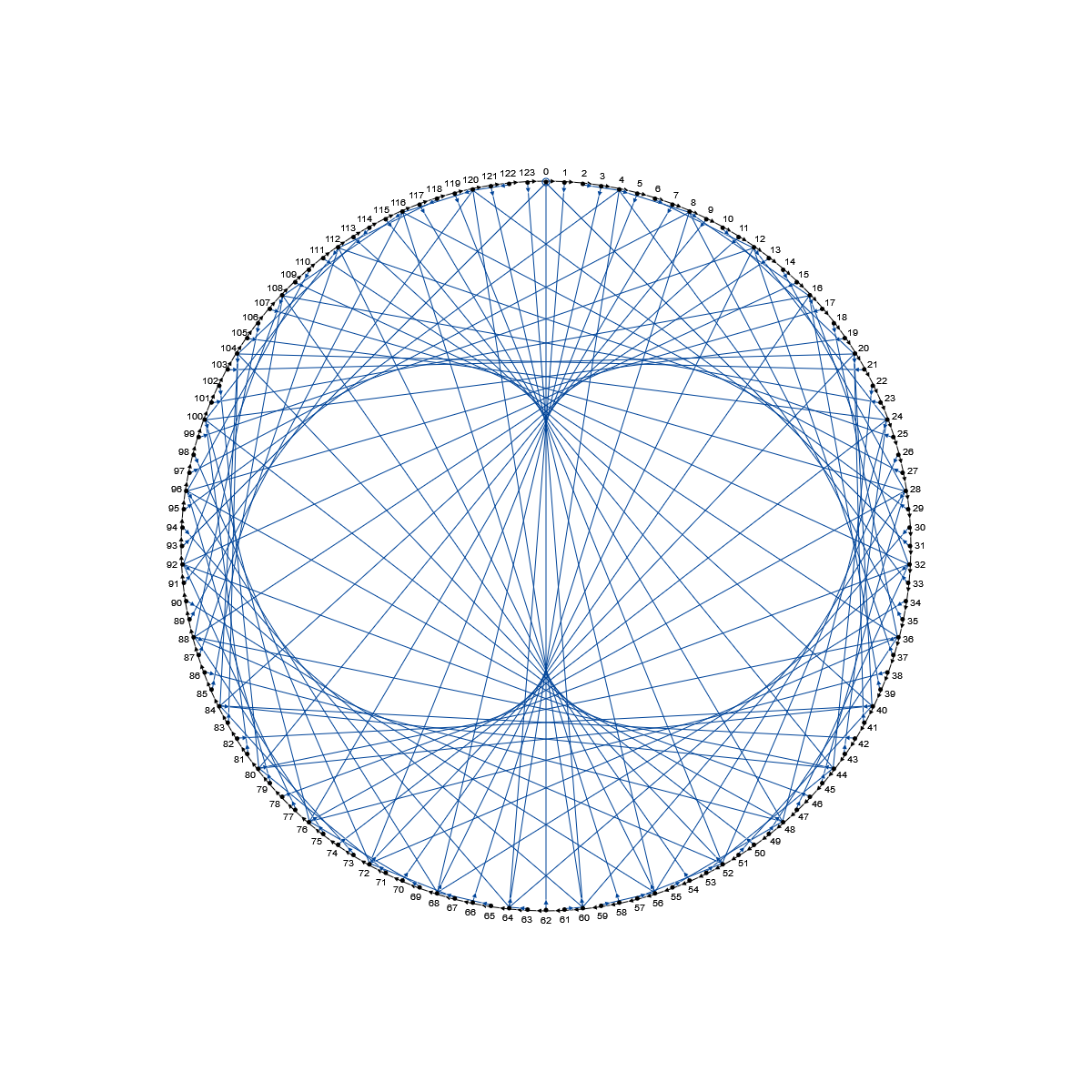

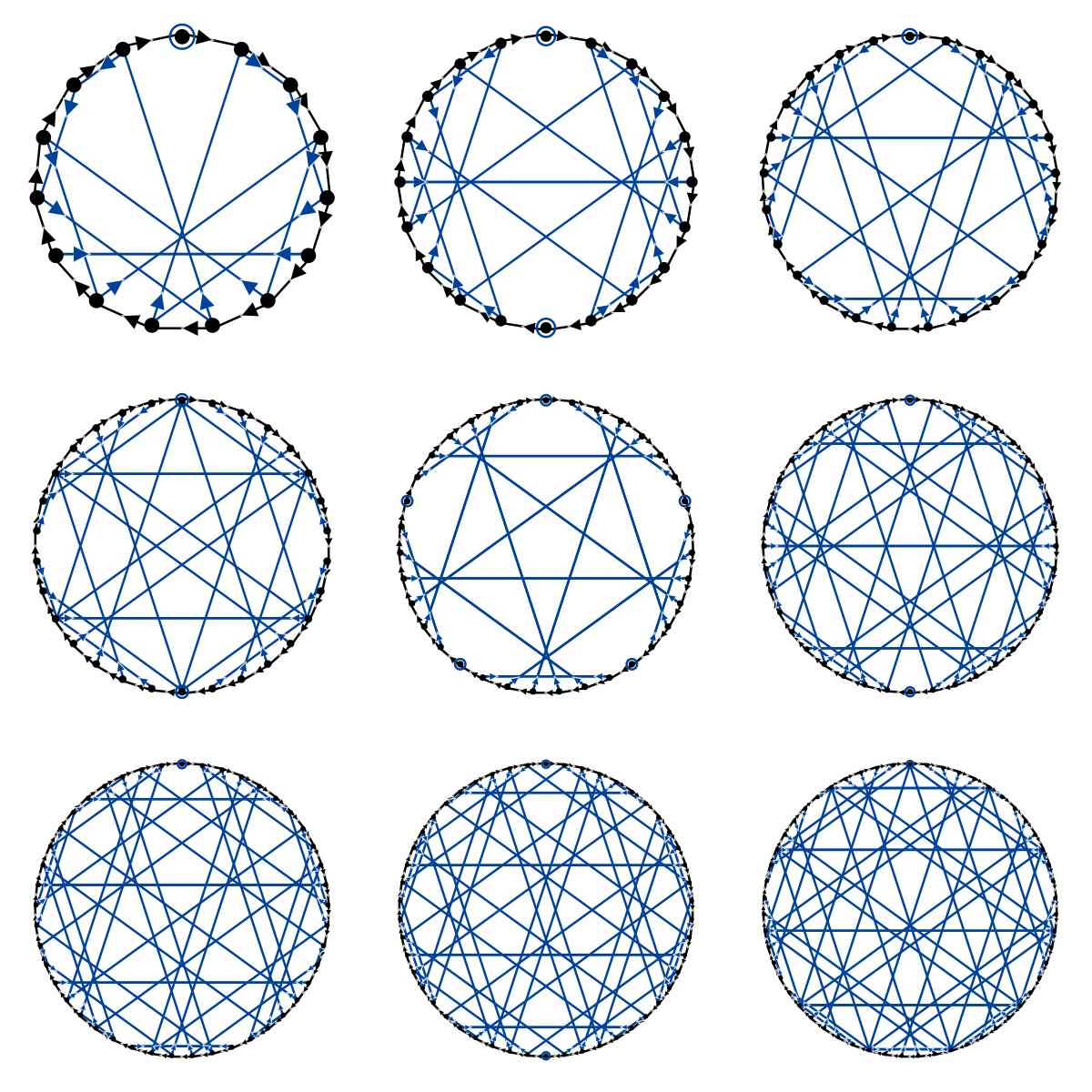

Runs of divisors leading up to multiples of \(b-1\) give similar but different series of shapes, sequentially containing versions of the epicycloids that are smaller and pointier. The general formula for these is \(n = x (b-1) - k + 1\), where \(x\) determines the “size” (with \(x=1\) reducing to the above formula for regular epicycloids). For instance, in base 30, setting \(k = 2\) and varying \(x\) gives the divisor sequence \([28, 57, 86, 115, 144, ...]\), which produces heart-like shapes of decreasing size.
Some similar modular algebra shows that these are still epicycloids, but they’re fractional ones, with a “base” of \(\frac{k-1}{x} + 1\) (that’s \(\left[2, \frac{3}{2}, \frac{4}{3}, \frac{5}{4}, ... \right]\) for the heart sequence) and a “number of bulbs” of \(\frac{k-1}{x}\). Reducible fractions correspond to compounds of epicycloids, so the “mini-nephroid” \(\frac{4}{2}\) (e.g. \(n=56\) in base 30, or \(n=124\) in base 64 depicted below) is in fact two interlaced cardioids!
Nested diagrams
Diagrams for composite divisors contain all the diagrams for the divisor’s factors within them. All the blue arrows from any factor diagram appear in the same place with the same quotient digits, just with the remainders (black numbers) scaled proportionally according to the divisor. In other words, any arrow from point \(i\) in a diagram with divisor \(n\) appears in a smaller factor diagram if \(i\) and \(n\) aren’t coprime.

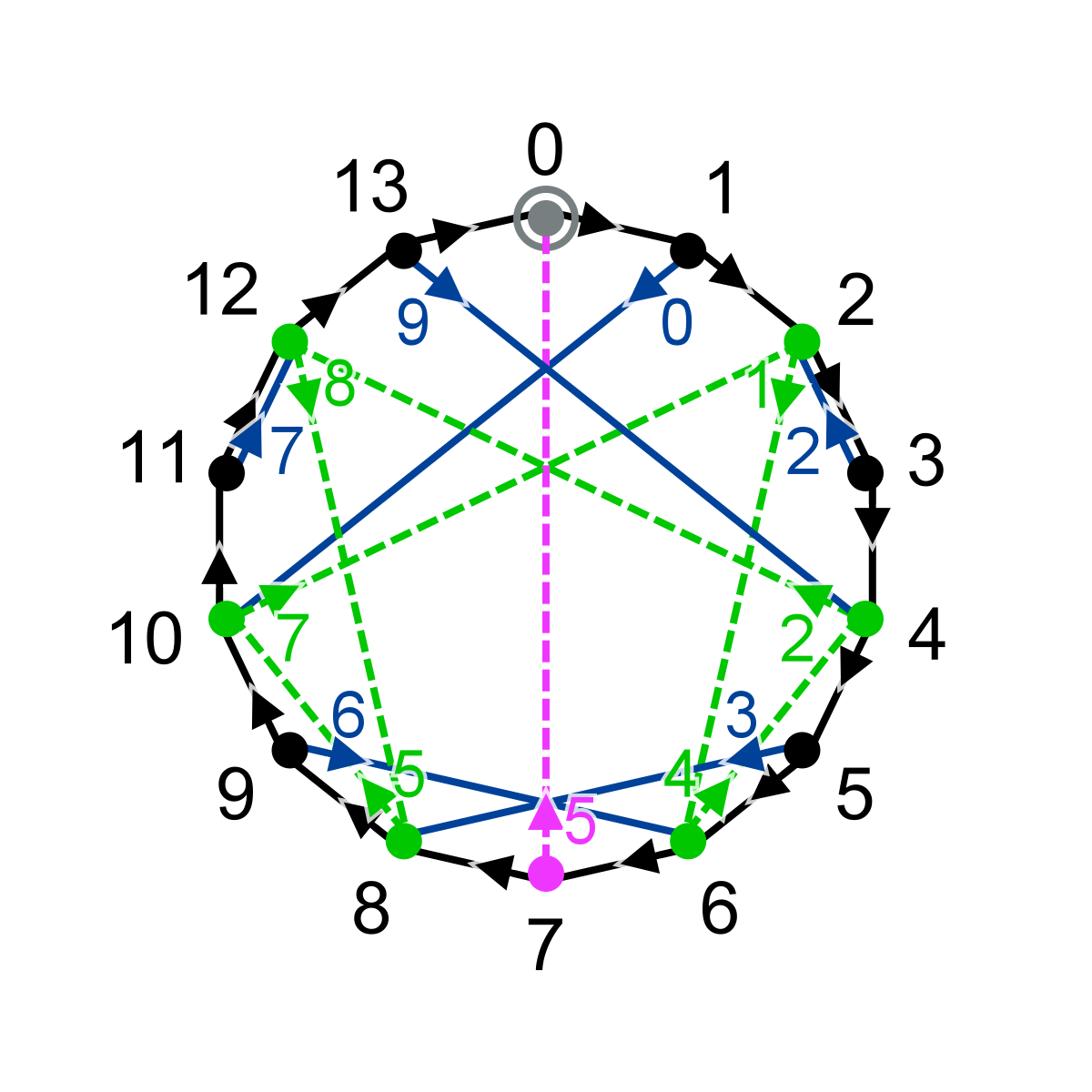

For example, in the diagram for \(n=14\) (regardless of the base), all the blue arrows from even-numbered dots correspond to the \(n=7\) diagram, and the arrow from 7 to \(n=2\):
This can also be seen in the technicolor version, since arrows that match factor diagrams correspond to reducible fractions, and can be given their own colours using the radio buttons.
Classic rules
These are some easily seen patterns that are analogous to conventional divisibility rules. I’ve labelled them by the relevant divisor factors in decimal, although the patterns apply in any base.
- 3 and 9: self-links (blue rings) on digits other than zero occur whenever \(n\) is a multiple of \(b-1\), or of a factor of \(b-1\). The contribution of those digits to the remainder is independent of their position in a number. These factors additionally give the diagram a rotational symmetry corresponding to the number of rings.
If \(n\) equals \(b-1\) or a factor of it, all numbers have rings. In this case, since no jumps can occur, the algorithm for the remainder comes down to summing the digits of the input number, modulo \(n\). This is similar to how divisibility of a number by 3 or 9 is determined by repeatedly summing its digits. - 2, 5, 10: if \(n\) shares a factor with \(b\), some digits point to 0, corresponding to multiples of the base that are divisible by \(n\). If \(n\) has no other prime factors than those of \(b\), it is a divisor of some power \(b^k\) of it, meaning any input number can be truncated to the last \(k\) digits without affecting the remainder. Compare the normal rules for divisibility by 4, 8, or other powers of 2 or 5.
- 11: if \(n = b+1\), the base multiples \(i b\) are congruent to \(i (n-1) \equiv i n - i \equiv -i \pmod n\). This means each point \(i\) is linked by a blue arrow to its additive inverse, the point \(n-i\) that is the same distance from 0, but on the other side of it. Following the divisibility algorithm thus corresponds to taking an alternating sum of the digits (mod \(n\)), matching the divisibility rule for 11. The visual result, given the equal spacing of the points around a circle with 0 at the top, is that all blue arrows are horizontal.
More interesting patterns arise for this value’s multiples (\(n = k (b+1)\)): the orientations of the blue arrows go through \(\frac{180}{k}\)-degree rotations from the horizontal in order. For \(k = 2\) (e.g., \(n = 22\) in decimal), they alternate between horizontal and vertical; for \(k = 3\) (33), they go along multiples of 60°, and so on. Despite the highly regular angles, the positions of the endpoints along a circle provide some unevenness to the resulting pattern, preventing it from being a regular grid and differentiating it from the analogous diagrams in different bases:
Non-natural values

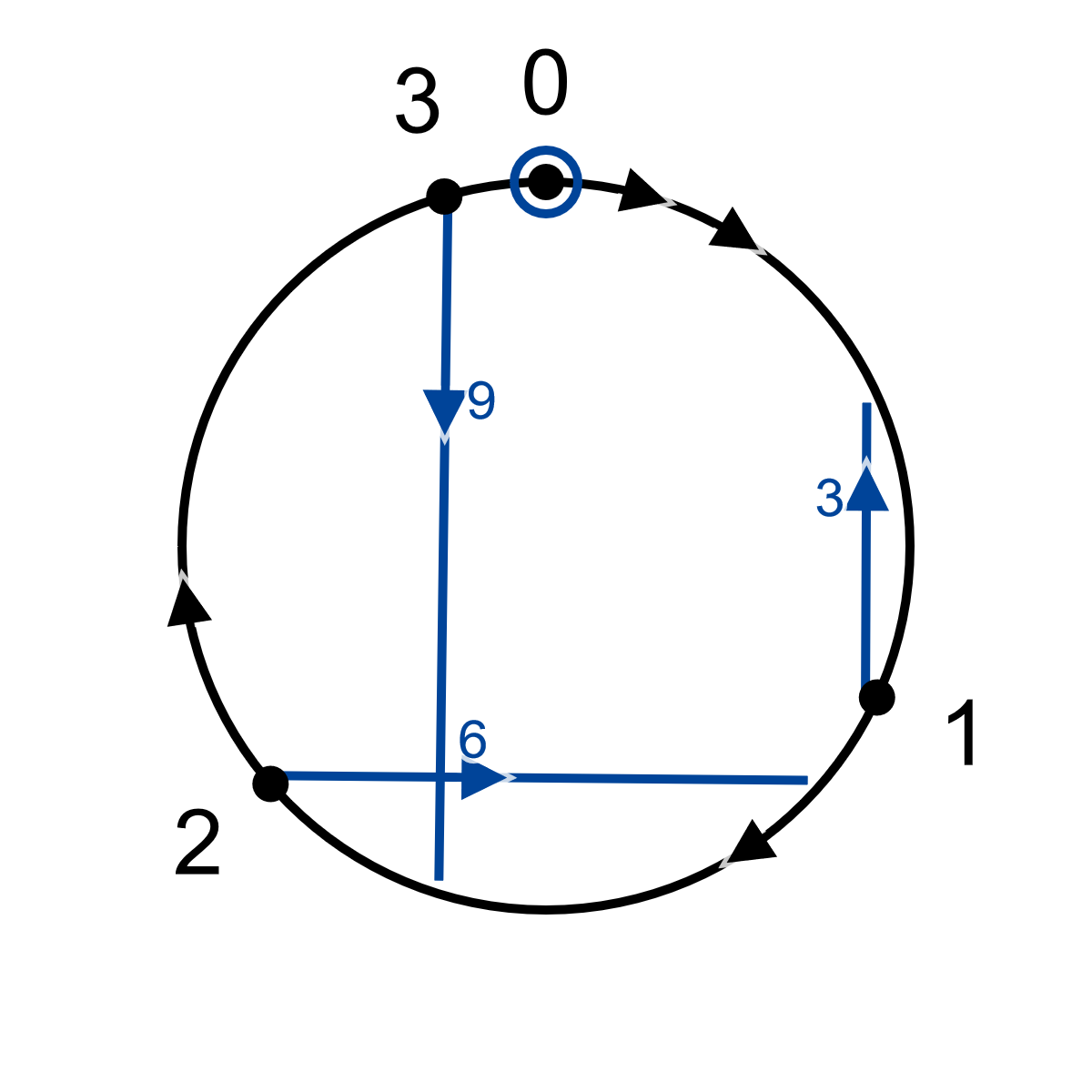

As hinted at above, the app doesn’t break for negative or fractional values of \(n\) and \(b\) (or of the input number). The diagram and algorithms still work fine, despite being slightly harder to wrap your head around. For fun, I tried setting the divisor to \(\pi\), and to my surprise found some more seemingly straight angles:
Since I found it satisfying to find out why this happens, I’ll leave that as an exercise to the reader. As a hint, the arrows aren’t exactly horizontal and vertical, but are for a nearby divisor.
